Hemisphere Machine Control

Hemisphere provides GNSS solutions for 3D machine control that allow you to work smarter and more accurate while saving time and money. Utilizing GNSS technology, Hemisphere uses satellites for RTK and relays it back to the machine. These solutions are available for dozers and excavators and can be used for construction, mining, and more. Hemisphere machine control consists of three products: VR1000 GNSS Heading Receiver, VR500 GNSS RTK Smart Antenna and IronOne Rugged Display. Grade, cut/fill, create ramps or basic roads with Hemisphere's high quality GNSS solution today!

GradeMetrix™ Dozer Site Control & Guidance Positioning System

GradeMetrix™ Dozer is made with industry-leading technology and is easy to use at an affordable price. It is simple to install and can be installed and calibrated in less than 8 hours. The VR500 all-in-one RTK Smart Antenna is compatible with all machines ranging from smaller compact dozers and skid steers to large mining dozers. The system allows new and experienced operators to dramatically increase efficiency, accuracy, and dependability which in return results in a significant ROI. GradeMetrix™ fits seamlessly into your existing site infrastructure and all major components are covered by their best-in-class 3-year warranty.

Applications

  • Road Construction
    • Material Layering
  • Site Preparation
    • Coarse Grading
  • Mining
    • Pass-2-Pass Guidance

Hardware

  • IronOne Rugged Display
  • VR500 GNSS RTK Smart Antenna

GradeMetrix™ Excavator Site Control & Guidance Positioning System

GradeMetrix™ Excavator is made with industry-leading technology and is easy to use at an affordable price. It is simple to install and can be installed and calibrated in less than 8 hours. The VR500 all-in-one RTK Smart Antenna is compatible with all machines ranging from smaller compact dozers and skid steers to large mining dozers. The system allows new and experienced operators to dramatically increase efficiency, accuracy, and dependability which in return results in a significant ROI. GradeMetrix™ fits seamlessly into your existing site infrastructure and all major components are covered by their best-in-class 3-year warranty.

Applications

  • Road Construction
    • Material Layering
  • Water Retention Basin
    • Dual Slope
  • Embankment Work
    • Single Slope
  • Canal Development
    • "Blind" Cuts
  • Dike Construction
    • Trenching

Hardware

  • IronOne Rugged Display
  • VR1000 GNSS Heading Receiver
  • VR500 GNSS RTK Smart Antenna

Key Features

  • Access to all GNSS satellite constellations for maximum accuracy and maximum coverage in difficult environments; including GPS, GNSS, GLONASS, BeiDou, Galileo, and QZSS
  • 2D, 2.5D, 3D operation modes all come standard. Operators can create pads to mach an existing or required height, and create batters, ramps, and slopes all on-site from the cab within seconds
  • Dynamic cut/fill to center or either side of the blade to allow operators to know the exact location and depth of their built or desired design surface without the time and cost of grade-checkers and survey professionals
  • Simplified user interface with multiple views including plan view, profile view, cross-section view, and more
  • Supports industry standard file formats including dwg, dxf, and LandXML
  • Easily locate lines and points yourself, checking site design and attributes as you go
  • Map projections or localized coordinate systems allow simple site coordination to existing coordinate systems or creation at new sites
  • Operators visualize the site in real time, eliminating delays and enabling fast and efficient completion of all site work including ramps, batters, trenches, slopes, and pads

Benefits

  • Right First Time - Less passes, work faster, reduced operator skill requirement, reduced fuel costs
  • Material Savings - Optimize remove/replace, improve transportation cost, control soil disposal cost
  • Reduced Survey Cost - Less site preparation, less checking, less rework, less stake replacement
  • Improved Safety - Less personnel around machines, operator stays in machine
  • 3-Year Warranty - Best in class warranty
  • Easily Adaptable - Primary components can be moved easily and quickly between machines

Hardware Specs

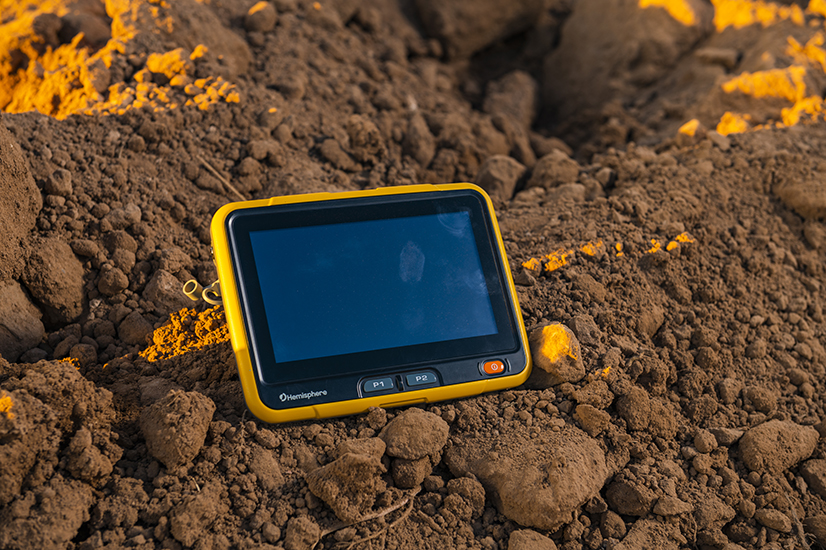

IronOne Rugged Display

  • 8" (1280 x 720 resolution) touchscreen
  • Microsoft Windows™ operating system
  • Sunlight Viewable display
  • Easy and intuitive user interface
  • Handles large 3D DTM project files
  • Wi-Fi, Bluetooth, and ethernet support
  • Integrated cellular modem for Ntrip corrections or remote/data support
  • IP67 rating

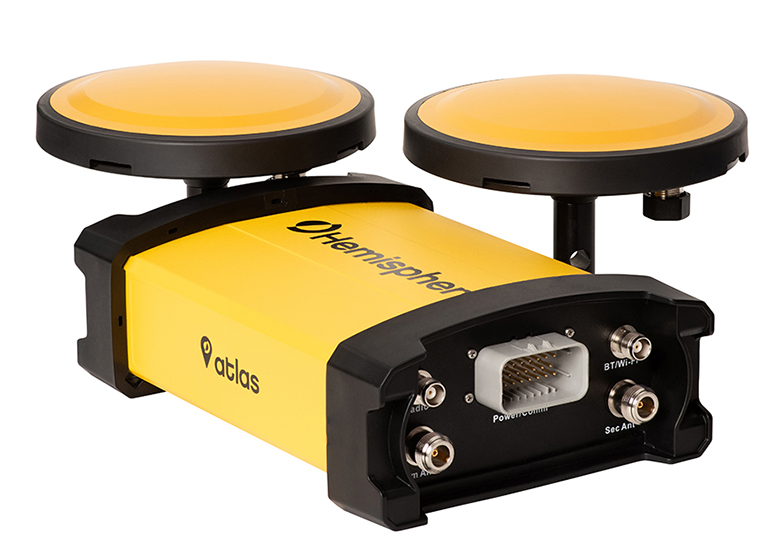

VR1000 GNSS Heading Receiver

  • Multi-frequency, Multi-GNSS GPS/GLONASS/BeiDou/Galileo/QZSS capable
  • Integrated 400 MHz UHF Radio
  • Powerful WebUI with ethernet, CAN, serial, Bluetooth and Wi-Fi connections
  • IP69K and MIL-STD-810G
  • Rugged GNSS antenna array
  • Hemisphere GNSS Athena® RTK engine
  • Supports Hemisphere GNSS Atlas® L-brand Correction Service

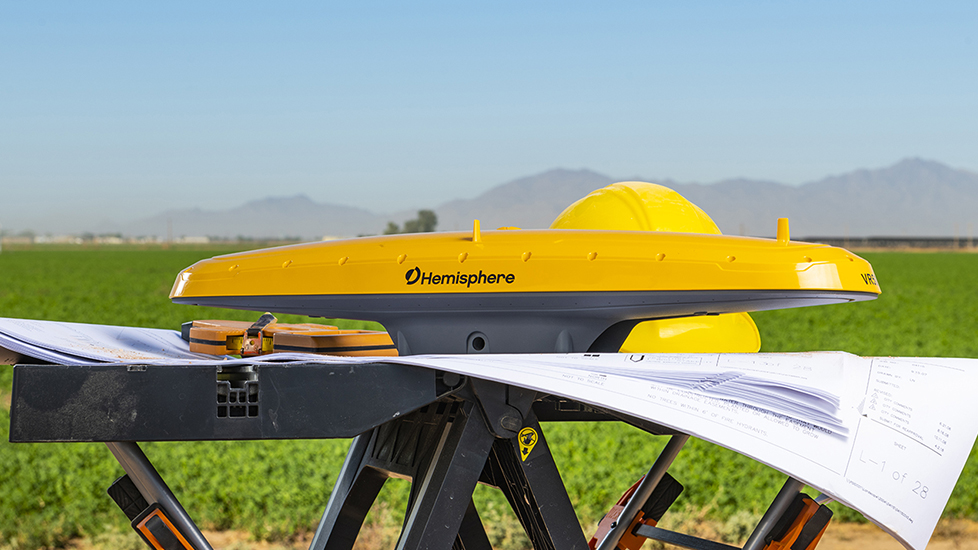

VR500 GNSS RTK Smart Antenna

  • Mastless position and heading RTK Smart Antenna for compact dozers and skidsteers to large mining dozers
  • Multi-frequency, Multi-GNSS GPS/GNSS/GLONASS/BeiDou/Galileo?GZSS capable
  • Integrated 400 MHz UHF radio
  • Powerful WebUI with ethernet, CAN, serial, Bluetooth, and Wi-Fi connections
  • IP69K and MIL-STD-810G
